Machinery: Sulzer projectile loom Used: All kinds of projectile loom. Model: P7100,PUD1/D2,TW11
Part Number:911-812-251
Xi’an JW Import & Export Co.,Ltd has gathered the best textile spare parts manufacturers, aiming to be the leading supplier of loom spare parts, dobby spare parts, jacquard spare parts and other textile spares and services for the China textile manufacturing industry.
Sulzer Projectile main spare parts: Projectile compelte,gripper,body,Projectile feeder ES,Projectiel feeder plate,RH-opener ES,Projectile feeder link,special rivet,special screw,Bush,RH_lever, Projectile feeder MS,Upper and lower gripper,RH_bar,RH-opener,Nut,Centering blade ,Weft end gripper,,Weft end gripper body,Tucking needle,Picking shoe,Picking link,Picking lever,Projectile returner,Slide plate,
FAS opener, Scissor, Roller,Brake band,Projectile lifter,Camplate, Projectile lifter upper part,Projectile guide block ES,Upper guide ,Expellor fork,Selector,Oil level glass with O-ring,Pinion shaft Z=13,Cutting device with scissors driven FA/SU,KSA shaft,Handle,Temple,Brake lining,Switch wheel Hub 28/25, Wrap beam bearing FA/SU,Ratchet 2:60,Tennex pin,Dolla,Globoid wheel Z=48,Chanin wheel,Clutch lining,Camdisc 40,Work gear,Spring conveyor,Steel healds,eyelet,angle disk,Dumpig bush,Weft tension lever,guide tooth block,sensor etc.
JW NO | Part Name | Description | Original No | Unit weight |
JW-S001 | Projectile D1 | Smooth 2.2*3 10N/1000GR(without.normal) | 911-812-211 | 40G |
Smooth 2.2*3 10N/1000GR(without.light) | 911-812-201 | 36G | ||
Smooth 2.2*3 19N/1900GR(orange.normal) | 911-812-212 | 40G | ||
Smooth 2.2*3 19N/1900GR(orange.light) | 911-812-202 | 36G | ||
Smooth 2.2*3 22N/2200GR(white.normal) | 911-812-213 | 40G | ||
Smooth 2.2*3 22N/2200GR(white.light) | 911-812-203 | 36G | ||
With groove 2.2*3 22N/2200GR(white.normal) | 911-812-214 | 40G | ||
With groove 2.2*3 22N/2200GR(white.light) | 911.812-204 | 36G | ||
With groove 2.2*3 25N/2500GR(light blue.normal) | 911-812-215 | 40G | ||
With groove 2.2*3 25N/2500GR(light blue.light) | 911-812-205 | 36G | ||
Groove 2.2*3 25N/2500GR(light blue.normal) | 911-812-216 | 40G | ||
Groove 2.2*3 25N/2500GR(light blue.light) | 911-812-206 | 36G | ||
Undulated 2.2*3 25N/2500GR(light blue.normal) | 911-812-217 | 40G | ||
Diamond Knurled 2.2*3 25N/2500GR(light blue.normal) | 911-812-218 | 40G | ||
Diamond Knurled 2.2*3 25N/2500GR(light blue.light) | 911-812-208 | 36G | ||

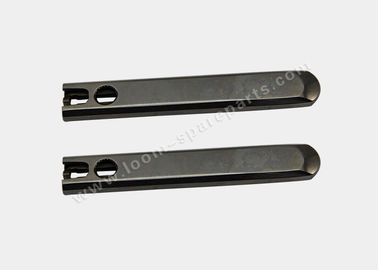

JW-S002 | Projectile D12 | Smooth 2.2*4 10N/1000GR(without.normal) | 911-812-251 911-812-346 | 36G |
Smooth 2.2*4 22N/2200GR(white.light) | 911-812-198 911-812-345 | 36G | ||
Smooth 2.2*4 22N/2200GR(white.normal) | 911-812-027 | 40G | ||
With groove 2.2*4 22N/2200GR(white.normal) | 911-812-051 | 40G | ||
With groove 2.2*4 22N/2200GR(white.light) | 911-812-199 | 36G | ||
With groove 2.2*4 22N/2200GR(light blue.normal) | 911-812-374 | 40G | ||
With groove 2.2*4 25N/2500GR(light blue.light) | 911-812-252 | 36G | ||
With groove 3.8*5 25N/2500GR(light blue.light) | 911-812-286 | 36G | ||
Groove 2.2*4 25N/2500GR(light blue.normal) | 911-812-087 | 40G | ||
Groove 2.2*4 30N/3000GR(brown.normal) | 911-812-156 | 40G | ||
Groove 2.2*4 25N/2500GR(light blue.light) | 911-812-192 | 36G | ||
Groove 3.8*5 25N/2500GR(light blue.light) | 911-812-289 | 36G | ||
Undulated 3.8*5 25N/2500GR(light blue.light) | 911-812-291 | 36G | ||
Undulated 3.8*5 30N/3000GR(brown.light) | 911-812-359 | 36G | ||
Diamond Knurled 2.2*4 25N/2500GR(light blue.normal) | 911-812-089 | 40G | ||
Diamond Knurled 2.2*4 25N/2500GR(light blue.light) | 911-812-194 | 36G | ||
Diamond Knurled 2.2*4 22N/2200GR(white.light) | 911-812-253 | 36G | ||
Diamond Knurled 3.8*5 22N/2200GR(white.light) | 911-812-287 | 36G | ||
Diamond Knurled 3.8*5 22N/2200GR(light blue.light) | 911-812-288 | 36G | ||
JW-S003 | Projectile D2 | Smooth 22N/2200GR(white.normal) | 911-812-108 | 60G |
Grooved 22N/2200GR(white.normal) | 911-812-105 | 60G | ||
Grooved 25N/2500GR(light blue.normal) | 911-812-106 | 60G | ||
Grooved 30N/3000GR(brown.normal) | 911-812-107 | 60G | ||
Undulated 22N/2200GR(white.normal) | 911-812-074 | 60G | ||
Undulated 25N/2500GR(light blue.normal) | 911-812-075 | 60G | ||
Undulated 30N/3000GR(brown.normal) | 911-812-076 | 60G | ||
Diamond knurled 22N/2200GR(white.normal) | 911-812-143 | 60G | ||
Diamond knurled 25N/2500GR(light blue.normal) | 911-812-145 | 60G |
